Two-dimensional collisions


This small Python project is a physical simulation of two-dimensional physics. The animation is carried out using Matplotlib's FuncAnimation method and is implemented by the class Simulation. Each "particle" of the simulation is represented by an instance of the Particle class and depicted as a circle with a fixed radius which undergoes elastic collisions with other particles.

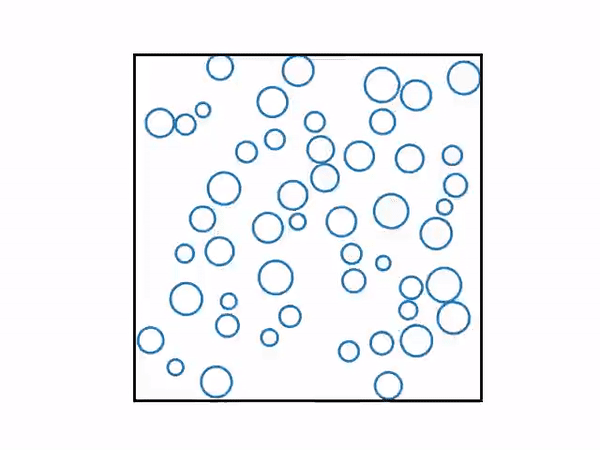

Collision animation

A Particle's position and velocity vectors are represented by NumPy arrays r and v, but their components can be retrieved and set by using the shortcuts Particle.x, Particle.y etc., implemented as class properties. Particles move within the domain $0 \le x < 1$, $0 \le y < 1$ and are reflected (elastically) off the edges (walls) of this domain. The elastic collision between two particles occurs when their centres are separated by the sum of their radii and the collision event changes their velocities to:

$$ \boldsymbol{u}_1 = \boldsymbol{v}_1 - \frac{2m_2}{M}\frac{(\boldsymbol{v}_1 - \boldsymbol{v}_2)\cdot(\boldsymbol{r}_1 - \boldsymbol{r}_2)}{|\boldsymbol{r}_1 - \boldsymbol{r}_2|^2}(\boldsymbol{r}_1 - \boldsymbol{r}_2) $$


$$ \boldsymbol{u}_2 = \boldsymbol{v}_2 - \frac{2m_1}{M}\frac{(\boldsymbol{v}_2 - \boldsymbol{v}_1)\cdot(\boldsymbol{r}_2 - \boldsymbol{r}_1)}{|\boldsymbol{r}_1 - \boldsymbol{r}_2|^2}(\boldsymbol{r}_2 - \boldsymbol{r}_1), $$

as dictated by the requirements of conservation of momentum and kinetic energy. The Wikipedia article on elastic collisions is a good place to learn more about this. Here, $M=m_1+m_2$ is the total mass of the colliding pair, and the particle's mass is considered to be just the square of its radius (i.e. its density is $\pi^{-1}$).

The most up-to-date code is on GitHub but as initially committed is given below.

import numpy as np
import matplotlib.pyplot as plt
from matplotlib.patches import Circle
from matplotlib import animation
from itertools import combinations

class Particle:
    """A class representing a two-dimensional particle."""

    def __init__(self, x, y, vx, vy, radius=0.01, styles=None):
        """Initialize the particle's position, velocity, and radius.

        Any key-value pairs passed in the styles dictionary will be passed
        as arguments to Matplotlib's Circle patch constructor.


        self.r = np.array((x, y))
        self.v = np.array((vx, vy))
        self.radius = radius

        self.styles = styles
        if not self.styles:
            # Default circle styles
            self.styles = {'edgecolor': 'b', 'fill': False}

    # For convenience, map the components of the particle's position and
    # velocity vector onto the attributes x, y, vx and vy.
    def x(self):
        return self.r[0]
    def x(self, value):
        self.r[0] = value
    def y(self):
        return self.r[1]
    def y(self, value):
        self.r[1] = value
    def vx(self):
        return self.v[0]
    def vx(self, value):
        self.v[0] = value
    def vy(self):
        return self.v[1]
    def vy(self, value):
        self.v[1] = value

    def overlaps(self, other):
        """Does the circle of this Particle overlap that of other?"""

        return np.hypot(*(self.r - other.r)) < self.radius + other.radius

    def draw(self, ax):
        """Add this Particle's Circle patch to the Matplotlib Axes ax."""

        circle = Circle(xy=self.r, radius=self.radius, **self.styles)
        return circle

    def advance(self, dt):
        """Advance the Particle's position forward in time by dt."""

        self.r += self.v * dt

        # Make the Particles bounce off the walls
        if self.x - self.radius < 0:
            self.x = self.radius
            self.vx = -self.vx
        if self.x + self.radius > 1:
            self.x = 1-self.radius
            self.vx = -self.vx
        if self.y - self.radius < 0:
            self.y = self.radius
            self.vy = -self.vy
        if self.y + self.radius > 1:
            self.y = 1-self.radius
            self.vy = -self.vy

class Simulation:
    """A class for a simple hard-circle molecular dynamics simulation.

    The simulation is carried out on a square domain: 0 <= x < 1, 0 <= y < 1.


    def __init__(self, n, radius=0.01, styles=None):
        """Initialize the simulation with n Particles with radii radius.

        radius can be a single value or a sequence with n values.

        Any key-value pairs passed in the styles dictionary will be passed
        as arguments to Matplotlib's Circle patch constructor when drawing
        the Particles.


        self.init_particles(n, radius, styles)

    def init_particles(self, n, radius, styles=None):
        """Initialize the n Particles of the simulation.

        Positions and velocities are chosen randomly; radius can be a single
        value or a sequence with n values.


            iterator = iter(radius)
            assert n == len(radius)
        except TypeError:
            # r isn't iterable: turn it into a generator that returns the
            # same value n times.
            def r_gen(n, radius):
                for i in range(n):
                    yield radius
            radius = r_gen(n, radius)

        self.n = n
        self.particles = []
        for i, rad in enumerate(radius):
            # Try to find a random initial position for this particle.
            while True:
                # Choose x, y so that the Particle is entirely inside the
                # domain of the simulation.
                x, y = rad + (1 - 2*rad) * np.random.random(2)
                # Choose a random velocity (within some reasonable range of
                # values) for the Particle.
                vr = 0.1 * np.random.random() + 0.05
                vphi = 2*np.pi * np.random.random()
                vx, vy = vr * np.cos(vphi), vr * np.sin(vphi)
                particle = Particle(x, y, vx, vy, rad, styles)
                # Check that the Particle doesn't overlap one that's already
                # been placed.
                for p2 in self.particles:
                    if p2.overlaps(particle):

    def handle_collisions(self):
        """Detect and handle any collisions between the Particles.

        When two Particles collide, they do so elastically: their velocities
        change such that both energy and momentum are conserved.


        def change_velocities(p1, p2):
            Particles p1 and p2 have collided elastically: update their


            m1, m2 = p1.radius**2, p2.radius**2
            M = m1 + m2
            r1, r2 = p1.r, p2.r
            d = np.linalg.norm(r1 - r2)**2
            v1, v2 = p1.v, p2.v
            u1 = v1 - 2*m2 / M *, r1-r2) / d * (r1 - r2)
            u2 = v2 - 2*m1 / M *, r2-r1) / d * (r2 - r1)
            p1.v = u1
            p2.v = u2

        # We're going to need a sequence of all of the pairs of particles when
        # we are detecting collisions. combinations generates pairs of indexes
        # into the self.particles list of Particles on the fly.
        pairs = combinations(range(self.n), 2)
        for i,j in pairs:
            if self.particles[i].overlaps(self.particles[j]):
                change_velocities(self.particles[i], self.particles[j])

    def advance_animation(self, dt):
        """Advance the animation by dt, returning the updated Circles list."""

        for i, p in enumerate(self.particles):
            self.circles[i].center = p.r
        return self.circles

    def advance(self, dt):
        """Advance the animation by dt."""
        for i, p in enumerate(self.particles):

    def init(self):
        """Initialize the Matplotlib animation."""

        self.circles = []
        for particle in self.particles:
        return self.circles

    def animate(self, i):
        """The function passed to Matplotlib's FuncAnimation routine."""

        return self.circles

    def do_animation(self, save=False):
        """Set up and carry out the animation of the molecular dynamics.

        To save the animation as a MP4 movie, set save=True.

        fig, = plt.subplots()
        for s in ['top','bottom','left','right']:
  [s].set_linewidth(2)'equal', 'box'), 1), 1)[])[])
        anim = animation.FuncAnimation(fig, self.animate, init_func=self.init,
                               frames=800, interval=2, blit=True)
        if save:
            Writer = animation.writers['ffmpeg']
            writer = Writer(fps=100, bitrate=1800)
  'collision.mp4', writer=writer)

if __name__ == '__main__':
    nparticles = 50
    radii = np.random.random(nparticles)*0.03+0.02
    styles = {'edgecolor': 'C0', 'linewidth': 2, 'fill': None}
    sim = Simulation(nparticles, radii, styles)
