This blog post was inspired by Holly Krieger's video for Numberphile.
The Möbius function, \(\mu(n)\), is related to the factorization of the positive integer \(n\) through
where \(\Omega(n)\) is the number of prime factors of \(n\), \(\omega(n)\) is the number of distinct prime factors of \(n\), and \(\delta_{i,j}\) is the Kronecker delta function (equal to 1 or 0 according to whether \(i=j\) or not).
That is, \(\mu(n) = 1\) if \(n\) is a square-free and has an even number of factors, \(\mu(n) = -1\) if \(n\) is a square-free and has an odd number of factors, and \(\mu(n) = 0\) if \(n\) has a repeated prime factor. For example,
| \(n\) | Factorization | \(\mu(n)\) |
|---|---|---|
| 1 | \(1\) | |
| 2 | = \(2\) | \(-1\) |
| 3 | = \(3\) | \(-1\) |
| 4 | = \(2^2\) | \(0\) |
| 5 | = \(5\) | \(-1\) |
| 6 | = \(2\cdot 3\) | \(1\) |
| 7 | = \(7\) | \(-1\) |
| 8 | = \(2^3\) | \(0\) |
| 9 | = \(3^2\) | \(0\) |
| 10 | = \(2\cdot 5\) | \(1\) |
| 11 | = \(11\) | \(-1\) |
| 12 | = \(2^2\cdot 3\) | \(0\) |
The Mertens function is the cumulative sum of the Möbius function:
This function is the subject of a famous disproven conjecture: that the magnitude of \(M(n)\) is always less than the square root of \(n\):
It was disproved by Andrew Odlyzko and Herman te Riele in 1985; the current upper-bound to a counter-example was shown by Kotnik and Te Riele (2006) to be below \(10^{6.91\times 10^{39}}\), but the precise value is not known.

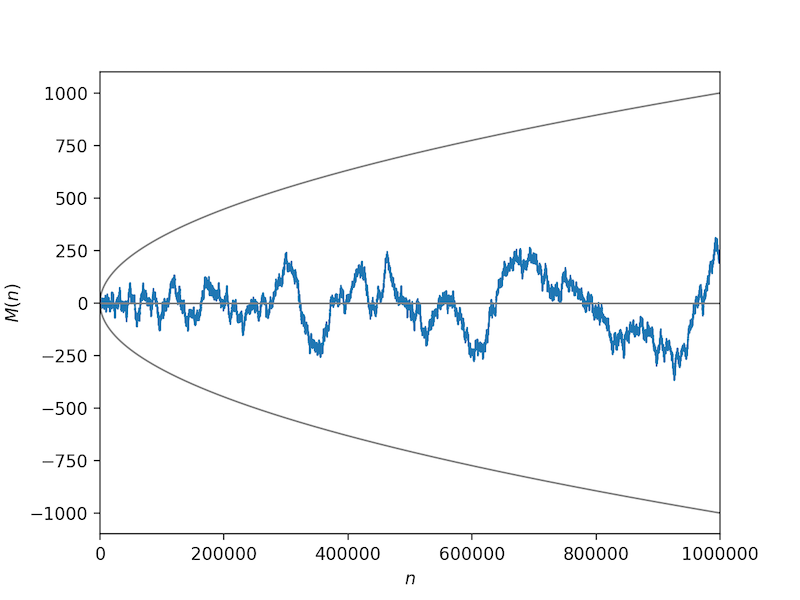

The code below plots the Mertens function and \(\pm \sqrt{n}\) for \(n \le 10^6\).
import numpy as np
import matplotlib.pyplot as plt
NMAX = 1000000
def get_mu_seq(nmax):
"""Return the values of the Möbius function up to nmax in a list."""
sqrt_nmax = int(np.sqrt(nmax))
mu = [1] * (nmax+1)
# Comopose the numbers from their factors, keeping track of the
# parity of the number of factors in the sign. If a number is the
# product of two prime factors set its value of mu to 0.
for k in range(2, sqrt_nmax+1):
if mu[k] == 1:
for j in range(k, nmax+1, k):
mu[j] *= -k
for j in range(k*k, nmax+1, k*k):
mu[j] = 0
# Set the value of the Möbius function according to the value in mu.
for k in range(2, nmax+1):
if mu[k] == k:
mu[k] = 1
elif mu[k] == -k:
mu[k] = -1
elif mu[k] < 0:
mu[k] = 1
elif mu[k] > 0:
mu[k] = -1
return mu
mu = get_mu_seq(NMAX)
n = range(1,NMAX+1)
# Plot the Mertens function and its (wrongly) conjectured bounds, ±sqrt(n).
plt.plot(n, np.cumsum(mu[1:]), lw=1)
plt.plot(n, np.sqrt(n), '0.5', lw=1)
plt.plot(n, -np.sqrt(n), '0.5', lw=1)
plt.xlim(0,NMAX+1)
plt.axhline(0, 0, NMAX+1, c='0.5', lw=1)
plt.xlabel('$n$')
plt.ylabel('$M(n)$')
plt.show()
