P6.4.1: Analysis of a nuclear explosion
Question P6.4.1

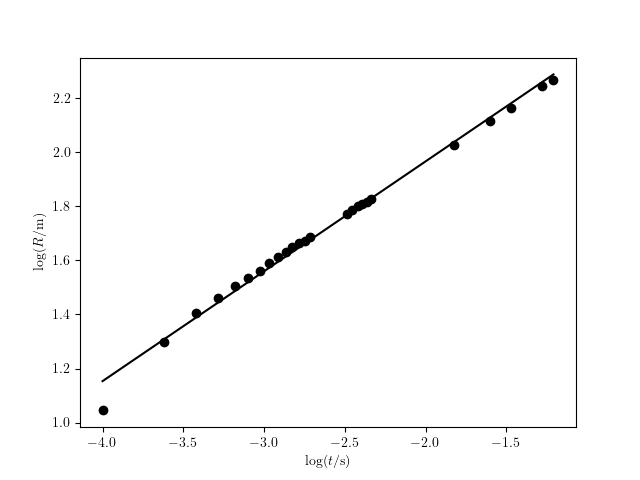

The expansion of the spherical ball of fire generated in an explosion may be analysed to deduce the initial energy, $E$, released by a nuclear weapon. The British physicist Geoffrey Taylor used dimensional analysis to demonstrate that the radius of this sphere, $R(t)$ should be related to $E$, the air density, $\rho_\mathrm{air}$, and time, $t$, through $$ R(t) = CE^{\frac{1}{5}}\rho_\mathrm{air}^{-\frac{1}{5}}t^{\frac{2}{5}}, $$ where, using model-shock wave problems, Taylor estimated the dimensionless constant $C \approx 1$. Using the data obtained from declassified timed images of the first New Mexico atomic explosion, Taylor confirmed this law and produced an estimate of the (then unknown) value of $E$. Use a log-log plot to fit the data in the table below (after G. I. Taylor, Proc. Roy. Soc. London A201, 159 (1950)) to the model and confirm the time-dependence of $R$. Taking $\rho_\mathrm{air} = 1.25\;\mathrm{kg\,m^{-3}}$ deduce $E$ and express its value in Joules and in 'kilotons of TNT' where the explosive energy released by 1 ton of TNT is arbitrarily defined to be $4.184\times 10^9\;\mathrm{J}$.
$t\;/\mathrm{ms}$ | $R\;/\mathrm{m}$ | $t\;/\mathrm{ms}$ | $R\;/\mathrm{m}$ | $t\;/\mathrm{ms}$ | $R\;/\mathrm{m}$ |
---|---|---|---|---|---|
0.1 | 11.1 | 1.36 | 42.8 | 4.34 | 65.6 |
0.24 | 19.9 | 1.50 | 44.4 | 4.61 | 67.3 |
0.38 | 25.4 | 1.65 | 46.0 | 15.0 | 106.5 |
0.52 | 28.8 | 1.79 | 46.9 | 25.0 | 130.0 |
0.66 | 31.9 | 1.93 | 48.7 | 34.0 | 145.0 |
0.80 | 34.2 | 3.26 | 59.0 | 53.0 | 175.0 |
0.94 | 36.3 | 3.53 | 61.1 | 62.0 | 185.0 |
1.08 | 38.9 | 3.80 | 62.9 | ||
1.22 | 41.0 | 4.07 | 64.3 |
Note: these data can be downloaded as new-mexico-blast-data.txt.
